First, use
& nbsp; FU-chain conveyor system introduced in Japan and Taiwan’s advanced technology for manufacturing into a horizontal or inclined (≤15 °) conveying powder, granular materials, which are widely used in building materials, construction, chemical, thermal power, food, mining, machinery, metallurgy, transport, ports and transportation industries.
Second, the main features of
& nbsp; large transmission capacity, allowing large amounts of material transported in a small space, transport capacity of 6 ~ 600m3 / h.
& Nbsp; low transport energy consumption, energy-saving 50% compared with the screw conveyor.
& Nbsp; good sealing performance, fully sealed enclosure for environmental pollution.
& Nbsp; long life, alloy steel conveyor processed through advanced heat treatment methods, normal life> 5 years, roller life ≥2 ~ 3 years on the chain.
& Nbsp; cost-saving, energy-saving and durable, low maintenance, reduce consumption and improve efficiency.
& Nbsp; process layout flexible. Horizontally or climbing (≤15 °).
Third, the tag example

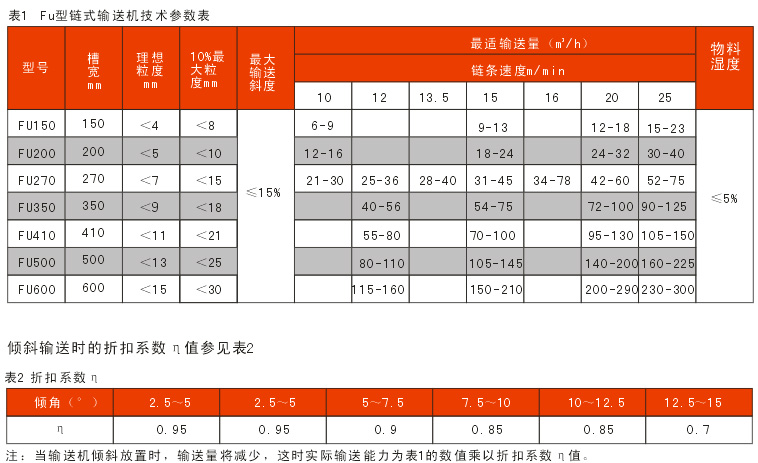

four, FU-chain conveyor technical parameters

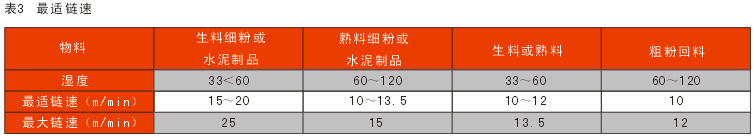

transporting raw materials and finished products, raw and cooked cement powder optimum chain speed is shown in table 3

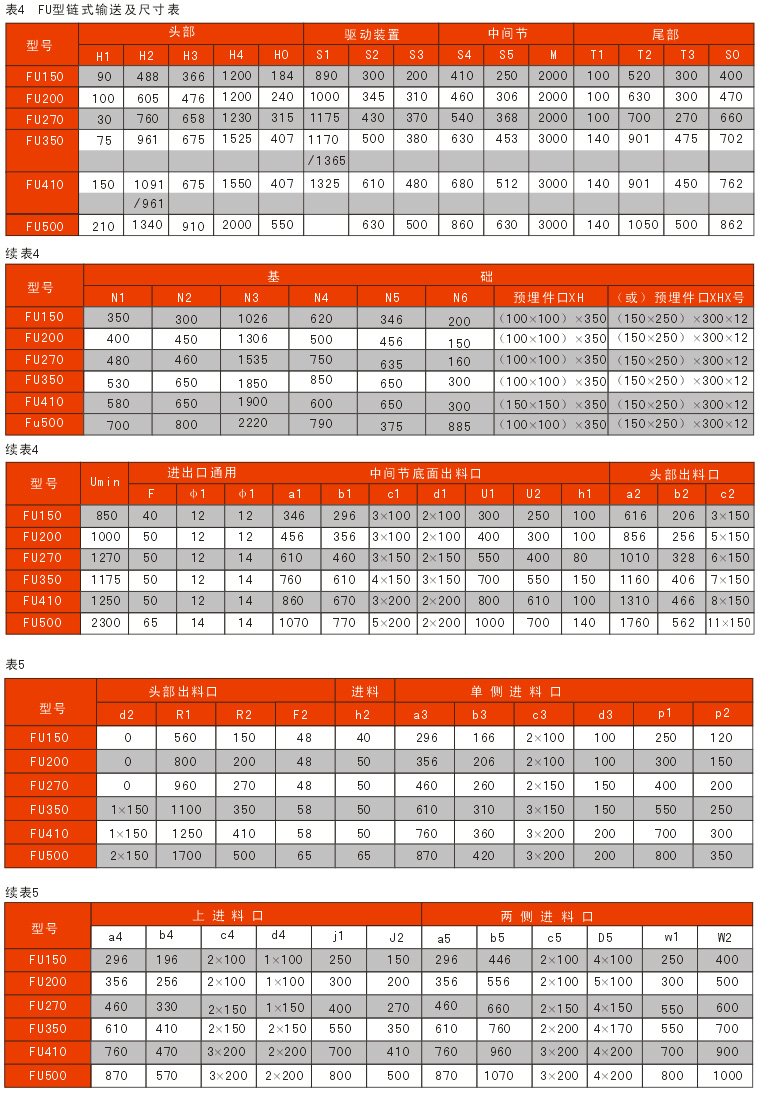

five, FU-chain conveyor Outline and Dimensions Table
|
